Product information
Performance highlights
◆ Available in full hybrid version
◆ Biggest mobile screen on today's market
◆ Double deck screen box 6.000 x 2.000 mm (20’” x 7’)
◆ 12 m² screening surface on each deck
◆ Capacity up to 600 tonnes / hour
◆Optional Double deck Bivitec FLIP FLOW screen box 6.000 x 1.900 mm (20’ x 6’)
◆ Screening force up to 40 G
◆ 11,4 m² screening surface on each deck
◆ Optional magnet
◆ Feed hopper 12 m³ or optional infeed belt
◆ Large range of screen meshes, punched plate, polyurethane decks available
◆ 2 speed track drive
◆ Extensive option list to configure to your application
◆ Optional 2 ½ deck screen box
Specifications
Transport dimensions with hopper | Working dimensions with hopper | Working dimensions with infeed belt | |
Weight | 45,9 - 46,3 t (50-51 sT) | ||
Length | 16.200 mm (53’2”) | 17.440 mm (57’3”) | 19.400 mm (63’8”) |
Lenght with infeed belt | 16.050 mm (52’8”) | ||
Height | 3.625 mm (11’11”) | 4.920 mm (16’2”) | 5.000 mm (16’5”) |
Width | 3.000 mm (9’10”) | 15.655 mm (51’4”) | 15.655 mm (51’4”) |

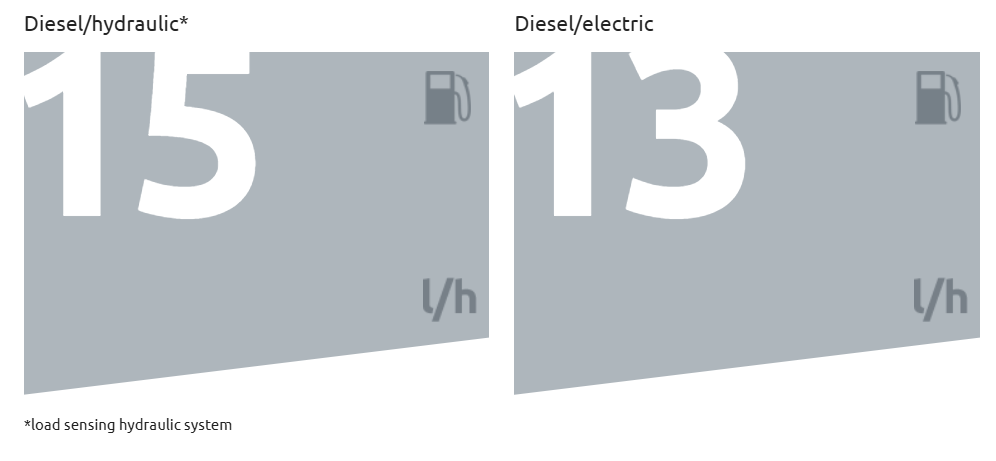

Fuel efficiency
Applications
◆ Fine screening
◆ Screening of difficult, sticky or wet materials to an infinite variety of sizes
◆Recycling
◆ Compost & peat
◆ Aggregates
◆ Wood
◆ Sand and gravel
◆ Iron ore
◆ Concrete
◆ Asphalt and others
Cost savings
The quality of our machines mean they earn you more by working harder for longer, while keeping operational costs to the absolute minimum.
Mobile technology
Remote monitoring
