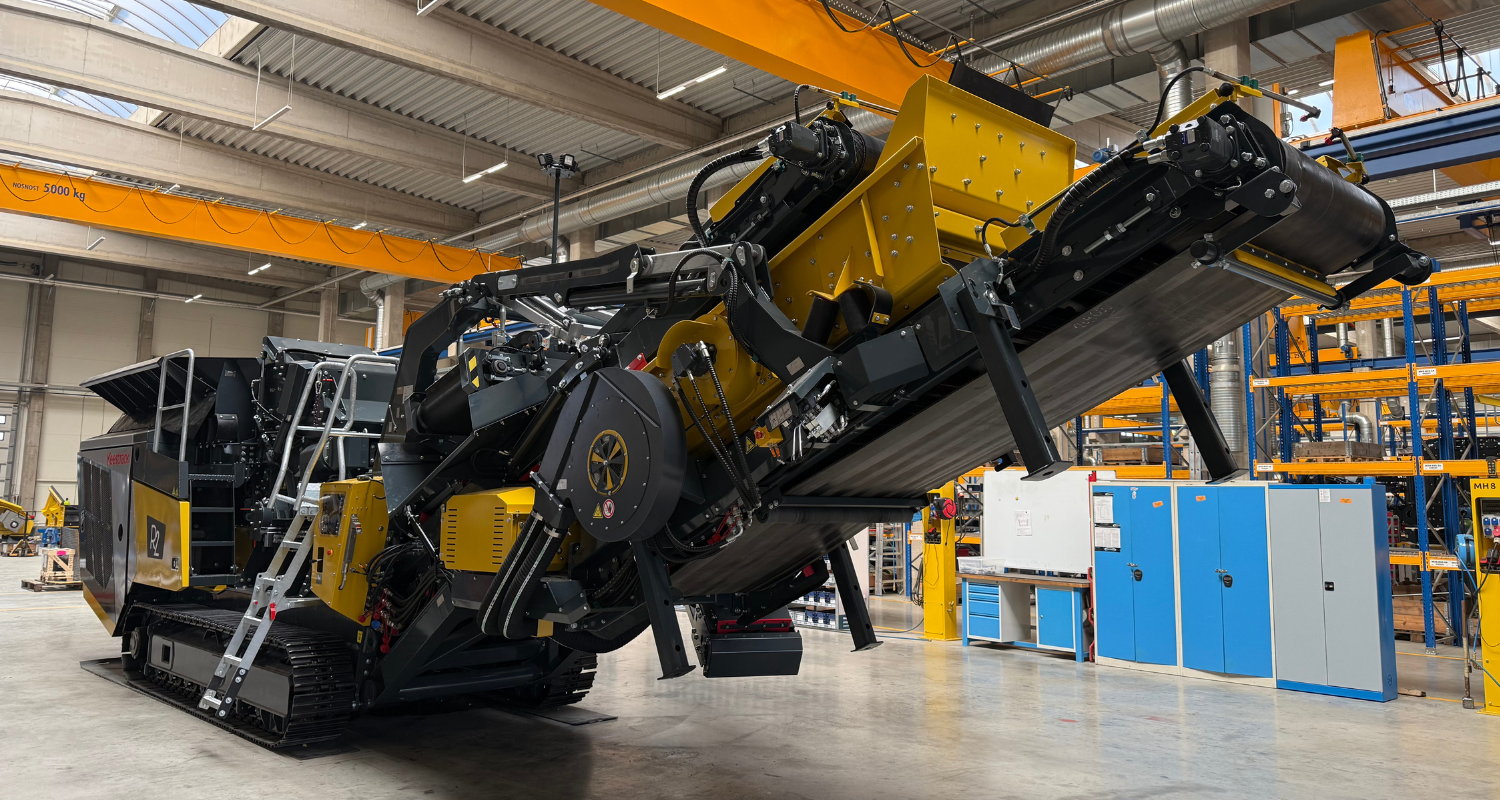

Product information
Performance highlights
◆ Available in diesel/hydraulic and ZERO electric plug in drive
◆ 3m³ (4 yard³) hopper
◆ Vibrating feeder with punched plate pre screen
◆ Asymmetric inlet to avoid blockage
◆ Inlet opening (H x W) 700 x 860 mm (27,5” x 34’’)
◆ Rotor design in Hardox with high mass of inertia and blow bars designed for a longer lifetime
◆ Rotor width 840 mm (2'9") and rotor diameter 920 mm (3')
◆ Accessible doors and panels on all sides of the machines for maintenance and repair
◆ Liftable magnetic separator
◆ Optional single deck after screen 3.040 x 1.200 mm (10’ x 3’11")
◆ Capacity up to 150 t/h
◆ Pre-screening via crusher bypass or stockpiled
◆ All drive drums and return drums of belt conveyors are greased for life
◆ Optional wind sifter
Specifications
Transport dimensions | Transport dimensions with after screen | Working length without after screen | Working length with after screen | |
Weight | 21t (23sT) | 26,8t (29sT) | ||
Length | 9.500 mm (31'2") | 13.050 mm (42'10") | 11.000 mm (36'1") | 12.850 mm (42'2") |
Height | 3.000 mm (9'10") | 3.000 mm (9'10") | ||
Width | 2.540 mm (8'4") | 2.540 mm (8'4") |

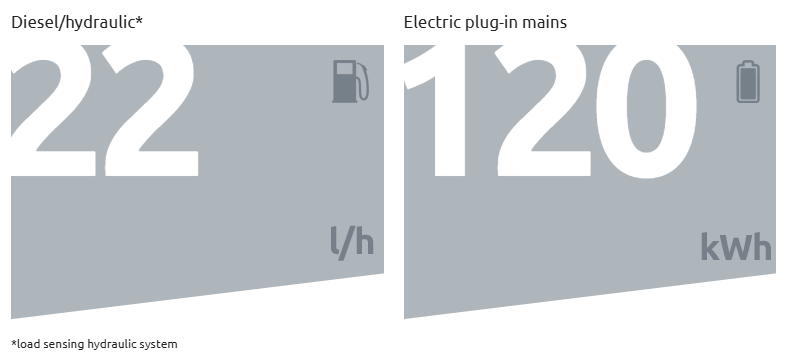

Fuel efficiency
Applications
◆ Limestone and many other low and medium abrasive natural rock
◆ Concrete and landfill recycling
◆ Primary and secondary crushing
◆ Yard clean up
◆ Construction waste
◆ Demolition
◆ Quarrying and mining
◆ Gravel
◆ Asphalt
◆ Coal and others
Cost savings
The quality of our machines mean they earn you more by working harder for longer, while keeping operational costs to the absolute minimum.
