Product information
Performance highlights
◆ Available in e-drive: full hybrid diesel-electric and plug in version or ZERO-drive: full electric drive without combustion engine onboard
◆ Independent double deck vibrating pre-screen 2.300 x 1.000 mm (7’7" x 3’3")
◆ Hydraulic sliding frame for service access under the feeding and scalping unit
◆ Feed size up to 600 mm (24”)
◆ Feed opening 1.110 x 750 mm (44” x 29”)
◆ C.S.S. min. - max. 45 - 180 mm (1 3/4” - 7”)
◆ Capacity up to 400 tonnes / hour
◆ Optional single deck after screen 2.800 x 1.200 mm (9'2" x 3'11")
◆ Intake hopper suitable for wheel loader and excavator, 5 m³ (6,5 yard³)
◆ Smart sequential auto start/stop from remote
◆ 2 speed track drive
◆ Ability to track while producing
◆ Extensive option list to configure to your application
◆ Removable engine /generator compartment on full hybrid e version
Specifications
Transport dimensions | Transport dimensions with after screen | Working length with after screen | |
Weight | 51,5 t (56 sT) | 62,1 t (68sT) | 62,1 t (68 sT) |
Length | 16.000 mm (52'6") | 20.340 mm (66'9") | 20.720 mm (67'12") |
Height | 3.650 mm (12') | 3.650 mm (12') | |
Width | 2.995 mm (9'10") | 2.995 mm (9'10") | 10.520 mm (34'6") |

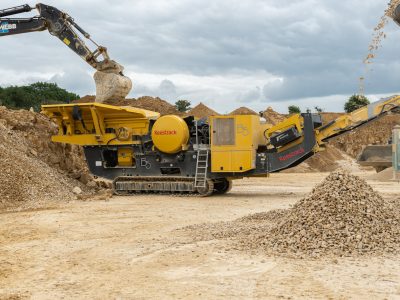

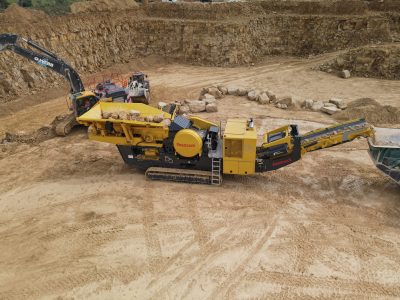

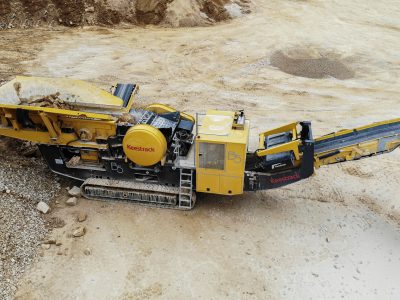

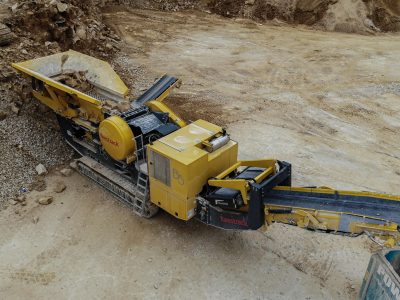

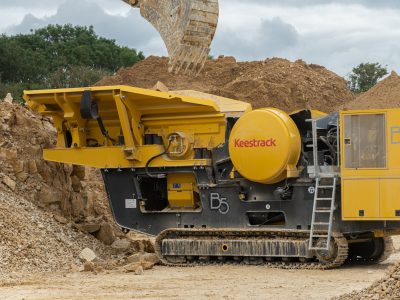

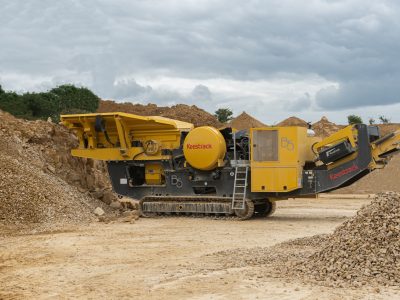

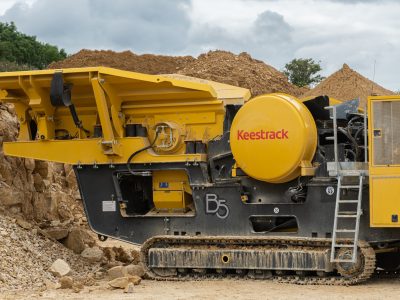

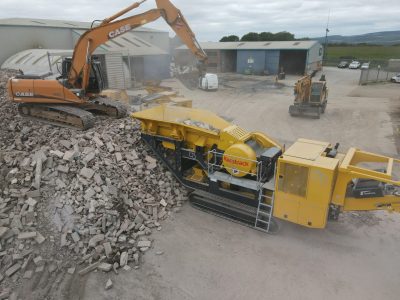

Product Images
Fuel efficiency
Applications
◆ Quarrying and mining
◆ Granite, Basalt and hard stone
◆ Primary crushing
◆ Primary crushing
◆ Dolomite, sandstone, most quarry applications
◆ Gravel
◆ Coal, Slag and others
Cost savings
The quality of our machines mean they earn you more by working harder for longer, while keeping operational costs to the absolute minimum.
