Product information
Performance highlights
◆ Can be used in primairy, secondary, tertiary or quarternary crushing
◆ Designed to crush the toughest of rock and ore
◆ Feed size up to 215 mm (8 5/10")
◆ C.S.S. min. - max. 16 - 44 mm (1" -2") depending on crushing chamber configuration
◆ Capacity up to 395 tonnes / hour
◆ Hopper 8 m³ (10 yard³)
◆ Other configurations possible with different crushing chambers
◆ Diesel / electric drive
◆2 speed track drive
◆ Optional 3-deck screen: Top: 4.640 mm x 1.800 mm, Middle and bottom 4.500 mm x 1.800 mm (14'9" x 5'10")
◆ Effective screen area 8,1 m² on each deck, with return conveyor
◆ Best product shape
◆ Extensive option list to configure to your application
◆ Removable engine /generator compartment
Specifications
Transport dimensions | Transport dimensions with after screen | Working length with after screen | |
Weight | 51.5 t (56 sT) | 62.1 t (68sT) | 62.1 t (68 sT) |
Length | 16,000 mm (52'6") | 20,340 mm (66'9") | 20,720 mm (67'12") |
Height | 3,650 mm (12') | 3,650 mm (12') | |
Width | 2,995 mm (9'10") | 2,995 mm (9'10") | 10,520 mm (34'6") |
Product Images

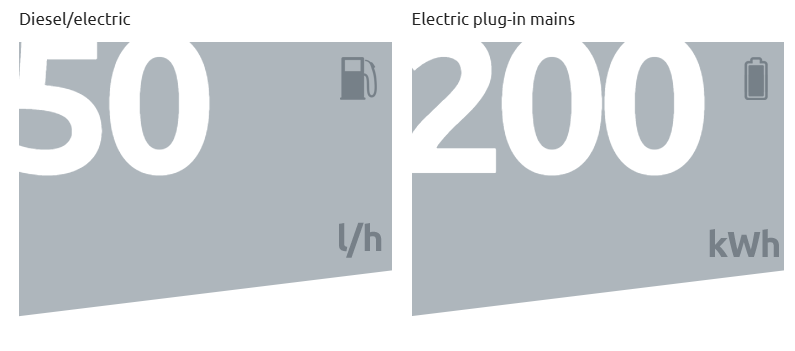

Fuel efficiency
Applications
◆ Abrasive and hard stone
◆ Hard rock and ore
◆ Granite and basalt
◆ Primairy, secondary, tertiary or quaternary crushing
◆ River and sea gravel
◆ Quarrying and mining
◆ Production of aggregates for asphalt, concrete and others
Cost savings
The quality of our machines mean they earn you more by working harder for longer, while keeping operational costs to the absolute minimum.
